The perfect solution for controlled discharging and feeding of wood pellets or chippings from silos, hoppers, pneumatic conveying systems, bag filter houses, or cyclones.

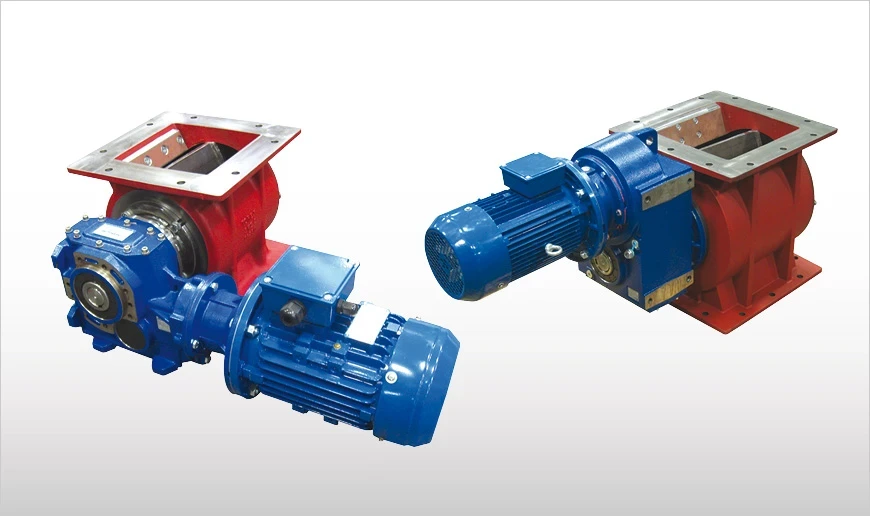

RWN Drop-Through Rotary Valves with square inlet consist of a tubular cast iron casing.
The horizontally mounted rotor with four V-shaped cross section compartments is manufactured from wear-resistant HARDOX steel. A HARDOX sill at the inlet sees to cutting of wood chippings.
The Rotary Valves are equipped with a direct drive. The plate opposite the drive end is equipped with an externally placed roller bearing which does not come into contact with the material fed. The bearing ensures higher resistance to stress and radial loads.
RWN Rotary Valves are designed for controlled discharging and feeding of wood pellets or chippings from silos, hoppers, pneumatic conveying systems, bag filter houses, or cyclones. The shape of the rotor blades and the cutting sill at the inlet ensure any wood present in the bio-fuel mixture will be cut.
