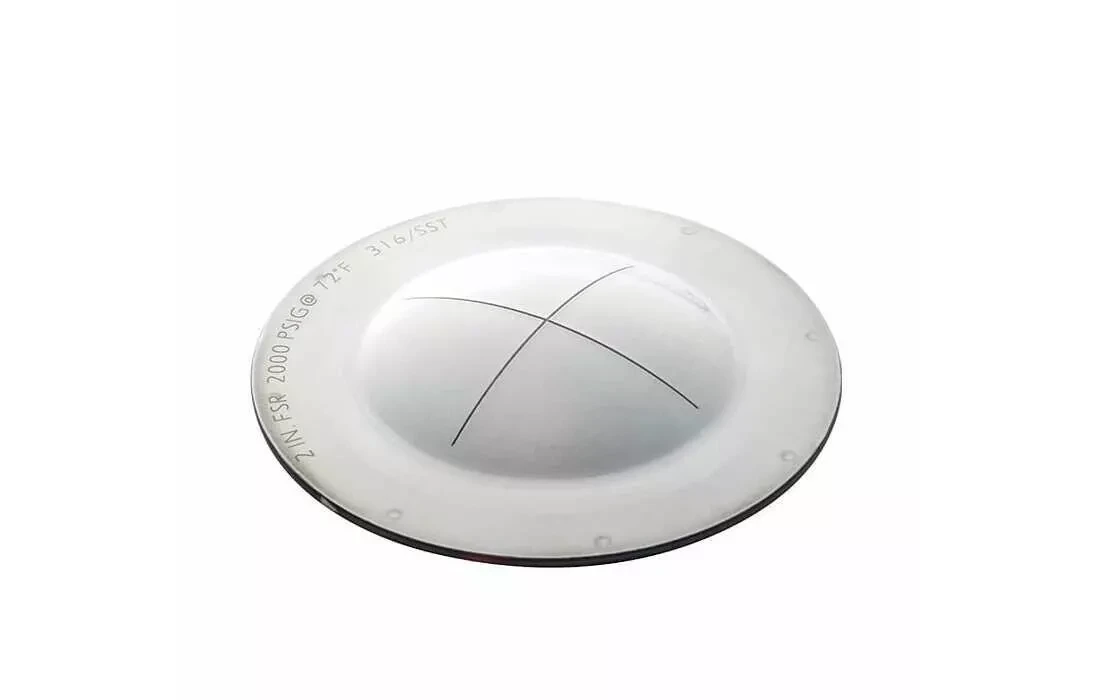

Fike SCRD Series Rupture Disc

Scored, Forward-acting, High Pressure

The SCRD Series rupture discs are specifically designed for high pressure applications in either liquid or vapor applications.

SCRD-Series

The SCRD Series rupture discs are well suited for minimizing leakage and corrosion in pressure relief valves, isolating them from process contaminants.

  • Interlocking ring prevents disc slippage at high operating and rupture pressures.
  • The SCRD Series can be operated as high as 90% of its rated burst pressure, depending on the service conditions.
  • Withstands full vacuum in all pressure ratings
  • Cross-scored design can be manufactured to be non-fragmenting (specify when ordering).
  • Ideal for relief valve isolation when non-fragmenting is specified
  • Available in a wide range of materials including 316/316L SST, Nickel 200/201, Monel® 400, Inconel® 600 and Hastelloy® C276. Other materials may be available on request
  • Will provide pressure relief at or below its rated burst pressure, even if damaged


How Rupture Discs Work

A rupture disc is a non-closing pressure relief device used to protect industrial applications from overpressure- or vacuum-related events. Learn about how rupture discs work and what sets Fike apart in its rupture disc manufacturing process.
