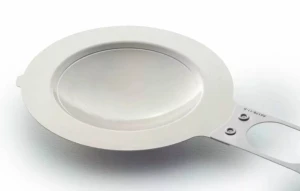

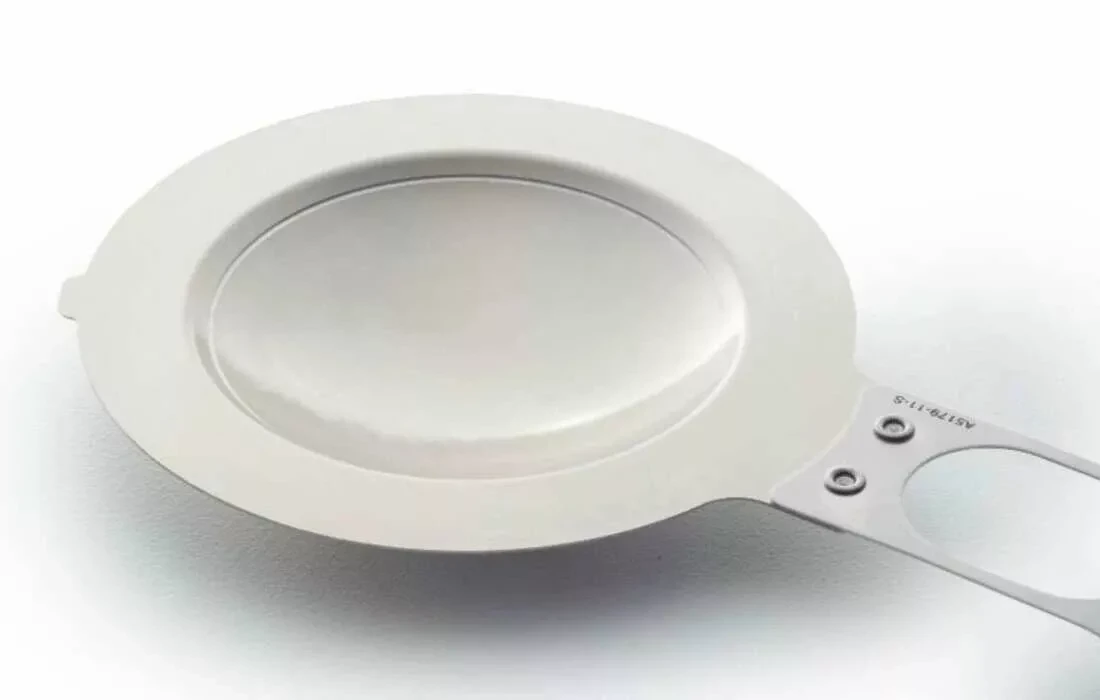

Fike RD300 Reverse Acting Rupture Disc

G2 Manufacturing Technology with High Burst Pressure Capacity

The RD300 is a reverse-acting rupture disc suitable for most common industrial pressure relief applications.

RD-300

Utilizing Fike’s patented G2 Manufacturing Technology, this pre-engineered rupture disc offers high burst pressure capacity and sizes up to 24″.

  • Operate up to 90% of its marked burst pressure for burst pressures over 40 psig (2.76 barg); up to 90% of the minimum for burst pressures less than or equal to 40 psig (2.76 barg) (ASME and EN ISO 4126-2); 95% of minimum burst pressure over 40 psig (2.76 barg) (EN ISO 4126-2)
  • Capable of cycling in excess of 10,000 times from full vacuum to 90% marked burst pressure (ASME); 95% of the minimum burst pressure range (EN ISO 4126-2) (up to 90% of minimum burst pressure for pressures below 40 psig)
  • Backpressure: 100% of specified burst pressure.
  • Operates in both gas and liquid applications.
  • ASME-certified.
  • Disc seal and ring material: 316/316L SST; Hastelloy® C276 and INC625.
  • Can be ordered with an optional FEP or PFA fluoropolymer liner on the process side, minimum burst pressure 30 psig (2.07 barg), maximum temperature 400°F (204°C).
  • Effective in VALVEGUARD protection of expensive Pressure Relief Valves and Safety Relief Valves.


What is Fike's G2 Manufacturing Process?


How Rupture Discs Work

A rupture disc is a non-closing pressure relief device used to protect industrial applications from overpressure- or vacuum-related events. Learn about how rupture discs work and what sets Fike apart in its rupture disc manufacturing process.
